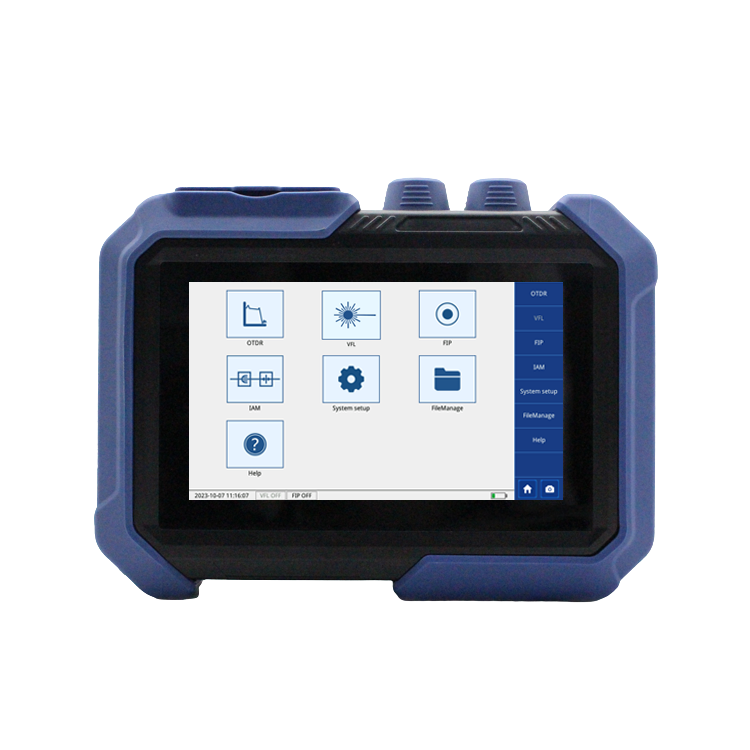

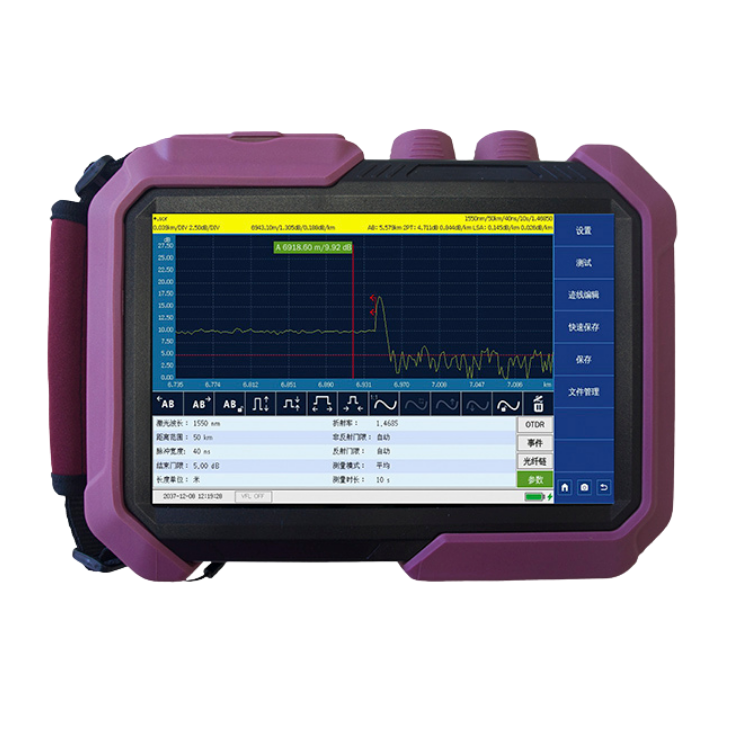

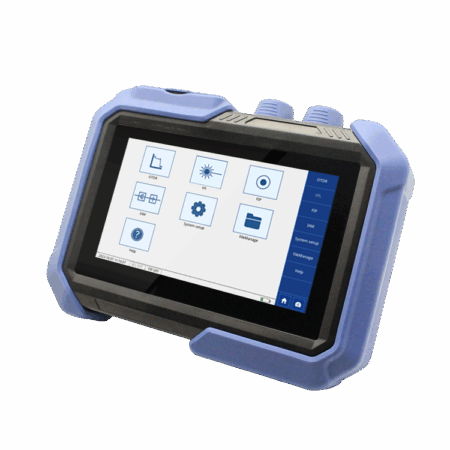

X-70 PALM OTDR

FEATURES

Long haul testing.
Several wavelengths can be chosen
Intelligent testing, simple use, powerful function
Large touch screen + shortcut keys, easy to operate
Large-capacity Li-battery with super long working hours
Memory card and SD card, large storage of traces
Protective carrying bag design
Built in Visible failure orientation VFL,650nm,Maximum testing distance 3KM

Category: OTDR

Description

Description

456 (1)

Details

Download Datasheet

General Specifications

Dimension/Display	234(H)×65(W)×177(D)mm/7 ” touch screen 1024*600
Weight	1.3kg

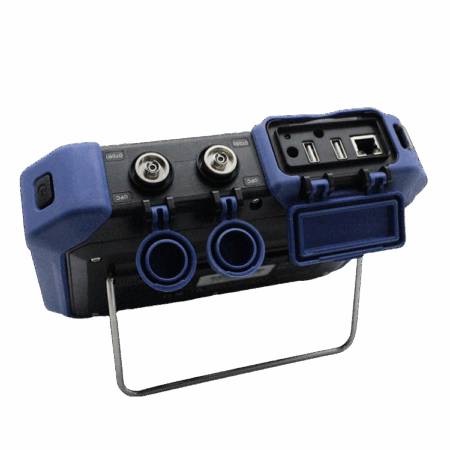

Optical Interface	FC/UPC (PC, and APC are available)
Temperature	Running temperature -10℃ to 50℃,Memory temperature -40℃ to 70℃
Relative Humidity	0% to 95% (non condensation)
Power Supply	Lithium battery; continuing working duration ≥ 24 hours
Storage of Trace	Internal memory 16G, > 20000 pieces
Data Interface	USB interface

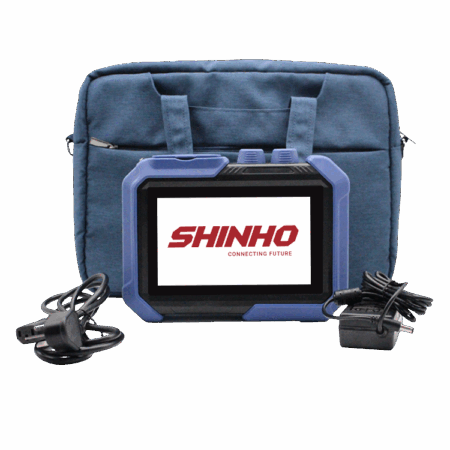

Package	OTDR,Power Adapter, Power Cord,Strap,User Manual, SD Card,Touch Pen, Carrying Bag

Technical Specifications

Model Number	X-70-D36	X-70-D45	X-70-T40	X-70-T45	X70-TP40	X-70-MD20
Wavelength (nm)	1310/1550	1310/1550	1310/1550/1625	1310/1550/1625	1310/1490/1550	850/1300 /1310/1550
Dynamic Range (dB)	36/34	45/44	40/38/38	45/44/44	40/38/38	20/18/32/30
Pulse Width (ns)	5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480					20 to 20480
Event Blind Zone (m)³	1m					3.5m/2.5
Attenuation Blind Zone (m)³	4m					15m/13
Linearity (dB/dB)	±0.05 dB/ dB			Loss Threshold (dB)		0.05
Sampling Resolution Ratio (m)	0.125 to 8			Typical Real-time Refreshing Duration (s)		1
Loss Resolution ratio (dB)	0.01
Sampling Point	64K
Distance Uncertainty (m)	±(1 m + 5×10-5× distance + sampling interval)
Distance Scope(km)	0.3 to 200
Duration of Measurement	Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min.
