Description
Details

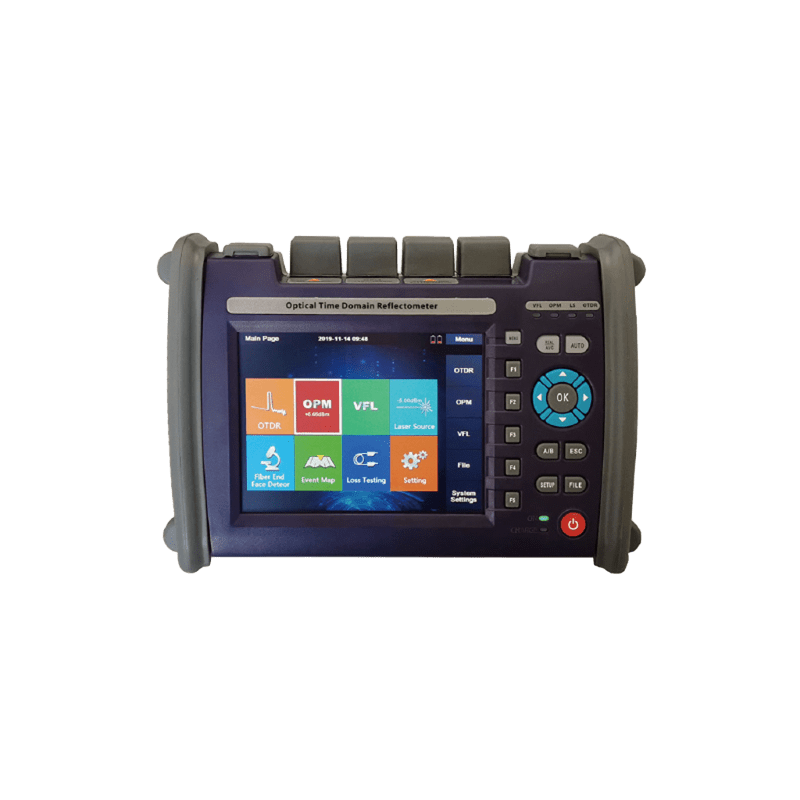

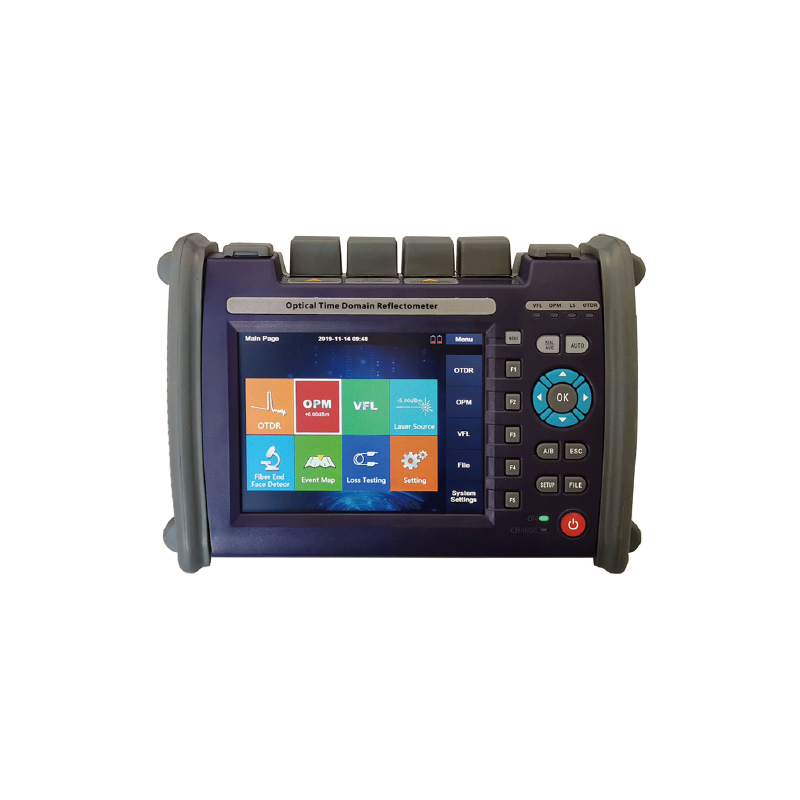

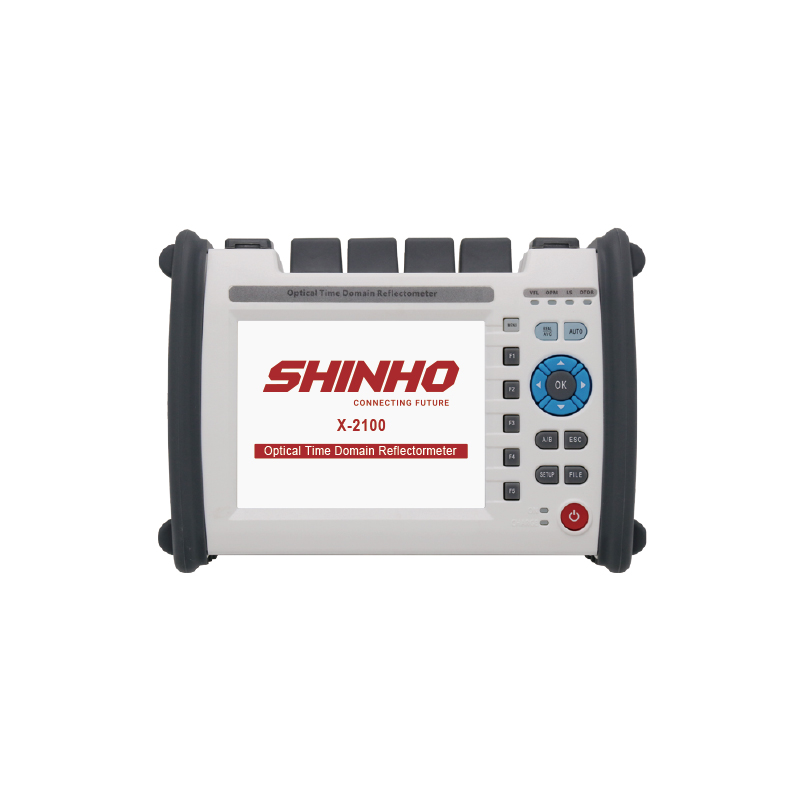

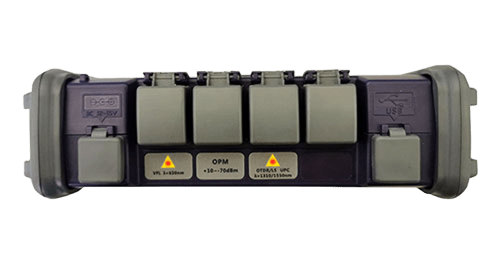

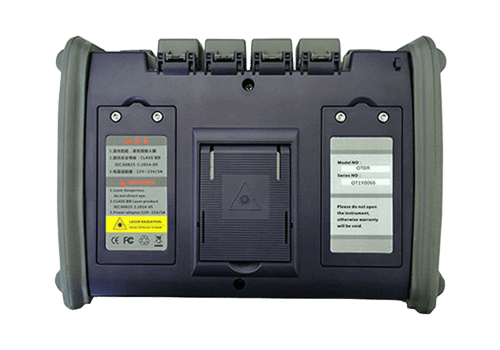

X-2100 series tester is a comprehensive optical fiber measuring instrument developedby Shanghai Xianghe Communication Technology Co., ltd. to solve the measurement of
various parameters of optical fiber. It mainly USES OTDR function and has other commonmeasuring functions. Really reflected: ONE MACHINE, TESTING ALL!
Modules
| Module | wavelength(nm) | Dynamic Range(dB) | Event/Attenuation Dead Zone（m） |
| X-2100-S-A28 | 1310/1550 | 28/26 | 0.8/4 |
| X-2100-S-A32 | 1310/1550 | 32/30 | 0.8/4 |
| X-2100S-A35 | 1310/1550 | 35/33 | 0.8/4 |
| X-2100-S-A37 | 1310/1550 | 37/35 | 0.8/4 |
| X-2100-S-A40 | 1310/1550 | 40/38 | 0.8/4 |
| X-2100-S-A42 | 1310/1550 | 42/40 | 0.8/4 |
| X-2100-S-B26 | 1625 | 26 | 0.8/4 |
| X-2100-S-B32 | 1625 | 32 | 0.8/4 |
| X-2100-S-C26 | 1650 | 26 | 0.8/4 |
| X-2100-S-C32 | 1650 | 32 | 0.8/4 |
| X-2100-S-AB32 | 1310/1550/1625 | 32/30/28 | 0.8/4 |
| X-2100-S-AB35 | 1310/1550/1625 | 35/33/32 | 0.8/4 |
| X-2100-S-AB38 | 1310/1550/1625 | 38/36/35 | 0.8/4 |
| X-2100-S-AC35 | 1310/1550/1650 | 35/33/32 | 0.8/4 |
| X-2100-S-AB40 | 1310/1550/1625 | 40/38/37 | 0.8/4 |
| X-2100-S-AC40 | 1310/1550/1650 | 40/38/37 | 0.8/4 |
| X-2100-S-AB42 | 1310/1550/1625 | 42/40/38 | 0.8/4 |
| X-2100-S-AC42 | 1310/1550/1650 | 42/40/38 | 0.8/4 |
| X-2100-S-AP35 | 1310/1550/1490 | 35/33/32 | 0.8/4 |
| X-2100-S-AP38 | 1310/1550/1490 | 38/36/35 | 0.8/4 |
| X-2100-M26 | 850/1300 | 22/26 | 1.2/5 |
| X-2100-SM32 | 850/1300/1310/1550 | 22/26/32/30 | SM：0.8/4 MM：1.2/5 |
| X-2100-SM35 | 850/1300/1310/1550 | 22/26/35/33 | SM：0.8/4 MM：1.2/5 |
| X-2100-SM40 | 850/1300/1310/1550 | 22/26/40/38 | SM：0.8/4 MM：1.2/5 |
| For more modules, welcome to contact us! We could offer OEM for you. | |||
General Specifications
| Display | 5.6 inch TFT-LCD (touch screen ) 640*480 |
| Battery | 7.4V/2500mAh X 2 lithium battery (with air traffic certification), Continuously test: 8 hours (back light off), Charging time: 3 hours |
| Power Adapter | Power supply AC/DC adapter, input 100-250V AC, 50-60 Ilz, 3 A max, Output 12 V DC. 35W |
| Data Storage | 100,000 groups of curves |

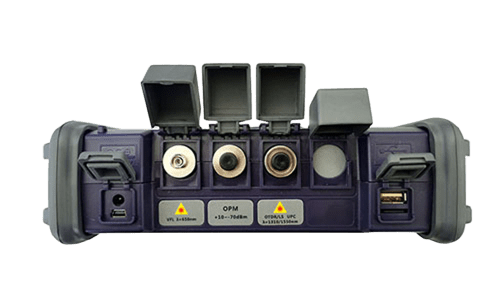

| Interface | USB A Type×1, Micro-USB×1） |
| Working Temp | -10℃~+50℃ |
| Storage Temp | -20℃~+70℃ |
| Humidity | ≤95% (non-condensation) |
| Dimension | 215×155×68mm / 1.1kg (battery included) |
| Accessories | Main unit, 12V power adapter, Lithium battery, FC adapter, USB cord, User guide, carrying case, wrist belt |
Technical Specifications
| Pulse Width | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
| Testing Distance | 500m,1km, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 200km, 240km |
| Sampling Resolution | Minimum 5cm |
| Sampling Point | Maximum 256,000 points |
| Linearity | ≤0.05dB/dB |
| scale Indication | X axis: 4~70m/div, Y axis: 0.09~5dB/div |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
| Refractivity Setting | 1.2000~1.5999, 0.0001 step |
Optional Modules
| Module | Parameter | Note |
| VFL | 1-20mW | 10mW in default |
| OPM | Option A：-10dBm~-70dBm; Option B：+23dBm~-50dBm | Option A in default |
| Laser source | Output：-5dBm±2dB，Frequency：CW/270Hz/1KHz/2KHz |
