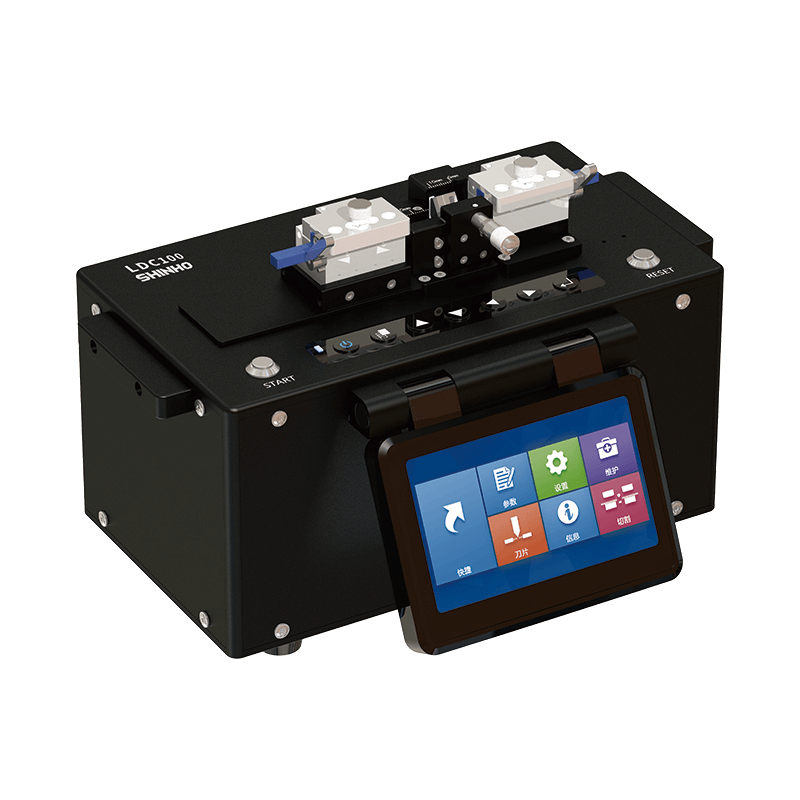

LDC-100 Large Diameter Optical Fiber Cleaver

Specially Designed for Large Diameter Fibers

  • User friendly GUI menu, easy to operate
  • Vacuum pump V-groove convenient to put fiber
  • Applicable to cladding diameter 80μm~1250μm fibers
  • Durable blade, life-time more than 20000 times cutting
  • Splicing program 40 modes, data storage 4000 groups

Contact us

Category:

Description

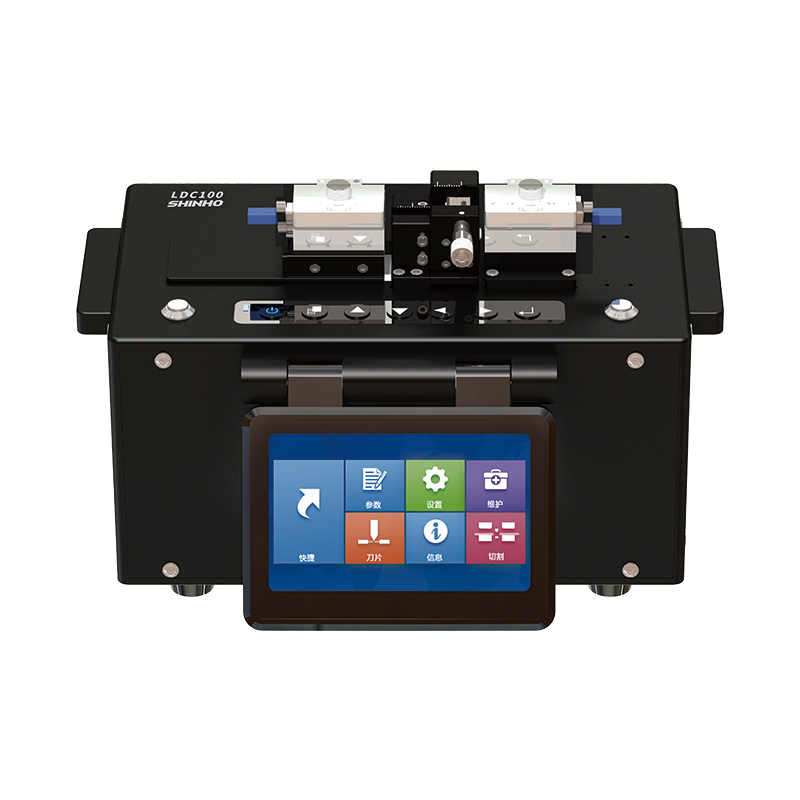

正 LDC100 1

Characteristics

Large Diameter Optical Fiber Cleaver

Details

Download Datasheet

Capture ldc100

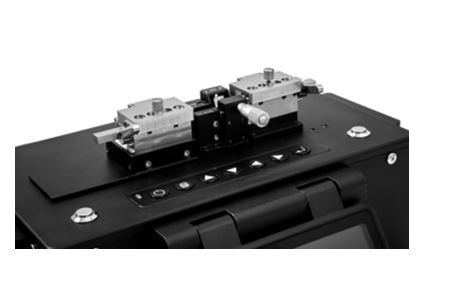

Precise structure design with good cutting performance

Capture2 ldc 100

Vacuum pump V-groove convenient to put fiber
More than 20000 times blade cutting lifetime

Capture3 ldc100

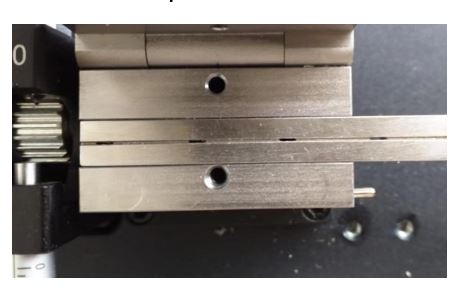

Different fiber holder adapters for different cladding diameter fibers

Capture4 ldc100

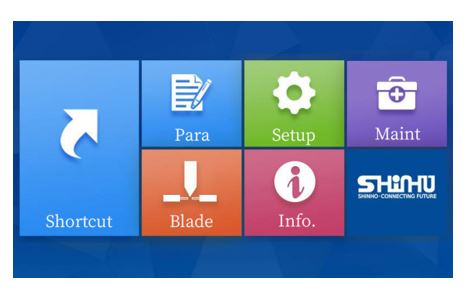

User friendly GUI menu, easy to operate
Support parameter defining and software upgrading

Specifications

Number Of fibers Single
Cladding Diameter 80~1250μm
Coating Diameter 160~3000μm
Fiber Clamping Vacuum pump assist to clamp
Cleaving Length 5~40mm
Cleaved Angle Typical 0.5°
Cleaving Method Apply tension and blade score
Blade Life Diamond blade, 10 positions, typical 20000 fibers(cladding diameter 125µm)
Number of Modes 40 groups
Display 5.0” HD color LCD touch screen
Date Storage 4000 groups cleaving records
Power Supply Adapter; Input: AC100~ 240 V(50 /60 Hz); output:DC11~13.5V
Operating/Storage Condition Humidity: 0~95%; Temperature: 0~+40°C(no condensation)
Terminal USB2.0
Dimensions 270mm(L)x155mm(W)x165mm(H)
Weight 4.37kg
Battery 3400mAh, 2 hours for fully charge, continuous working time up to 8 hours(about 600 cores cleaving)

Accessories in the box

  • LDF cleaver
  • Power Adapter
  • Power Cord
  • User Manual (USB Drive)
  • Tools (01/02/03/04) – (1 set)
  • Microscope
