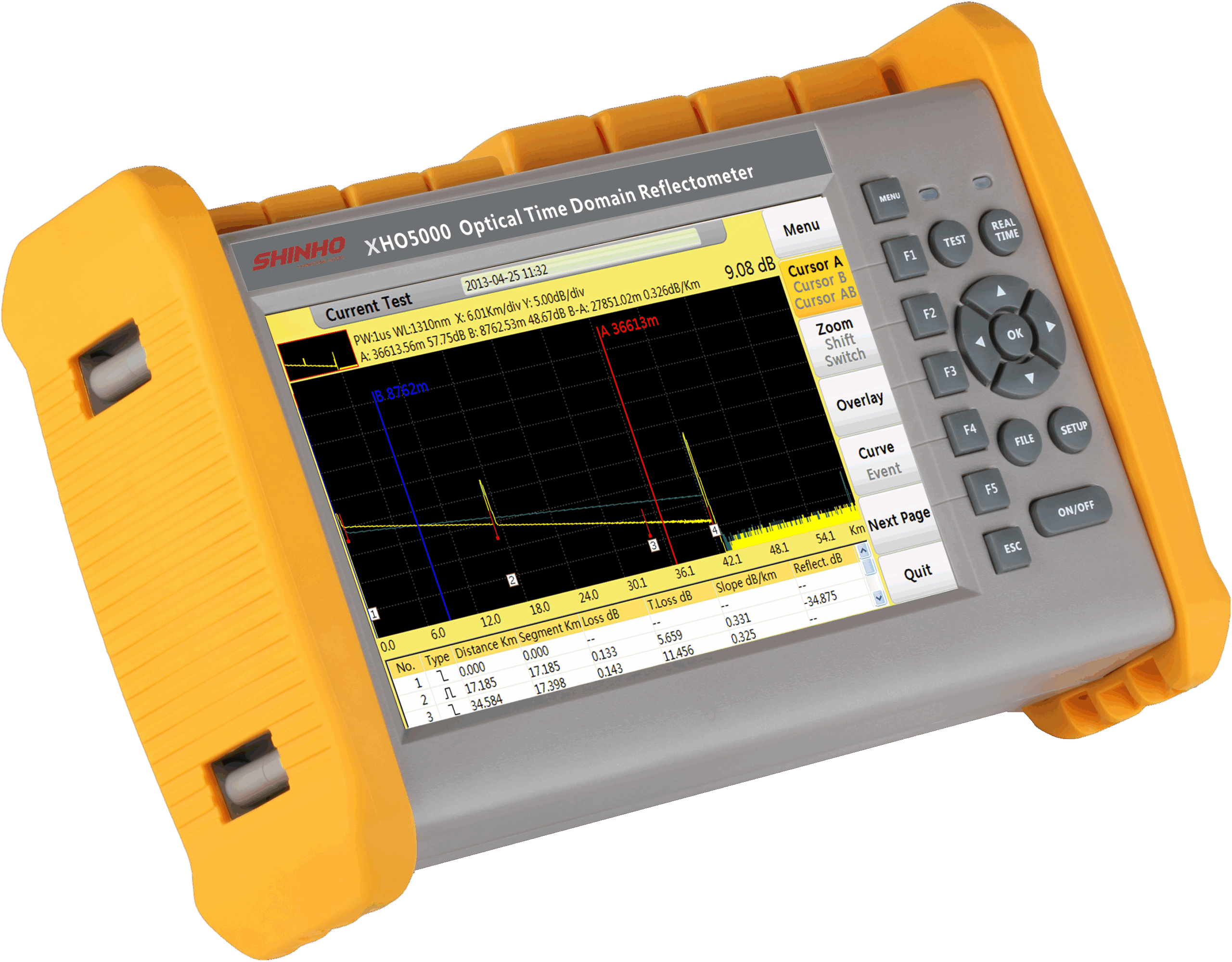

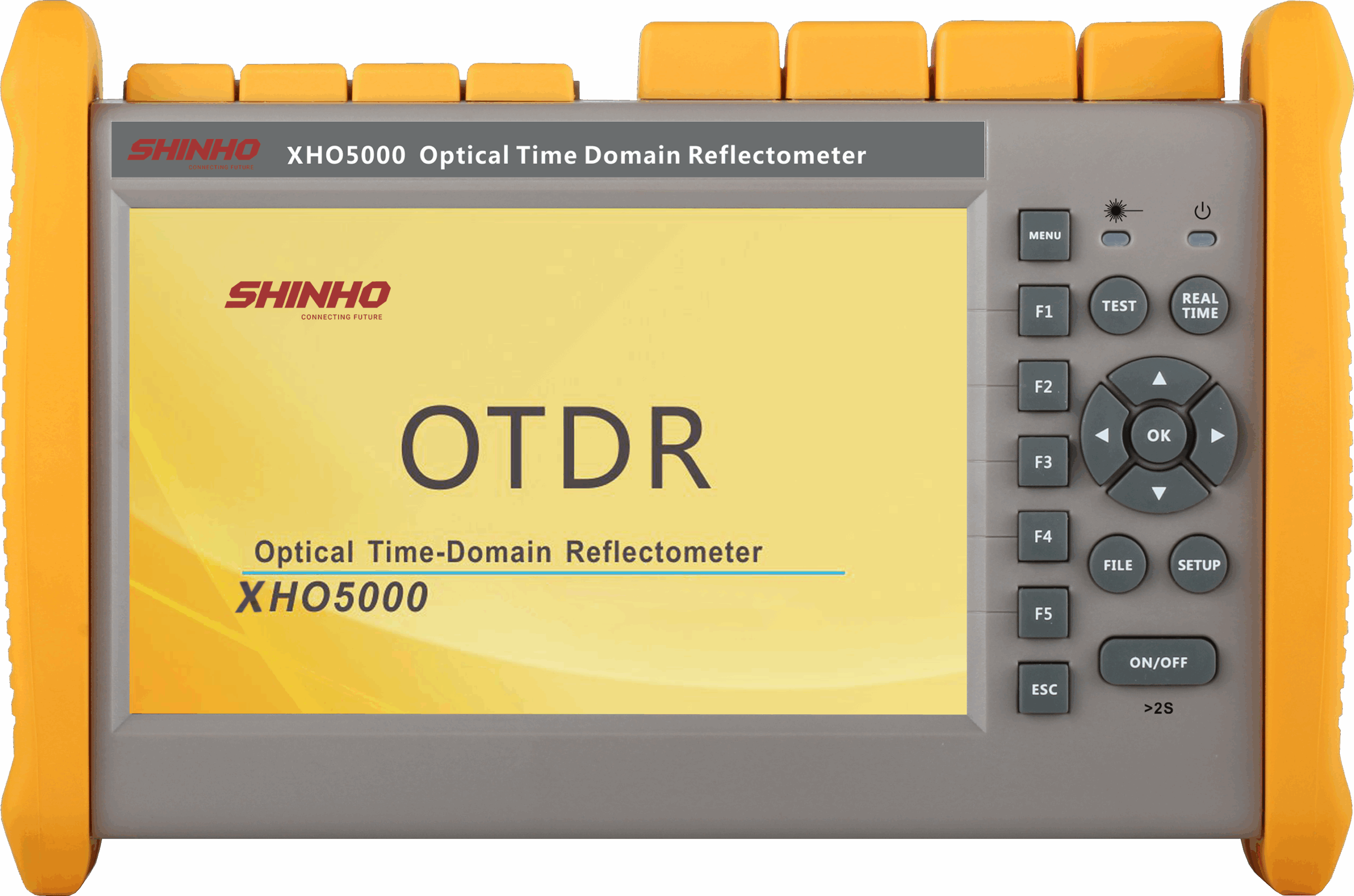

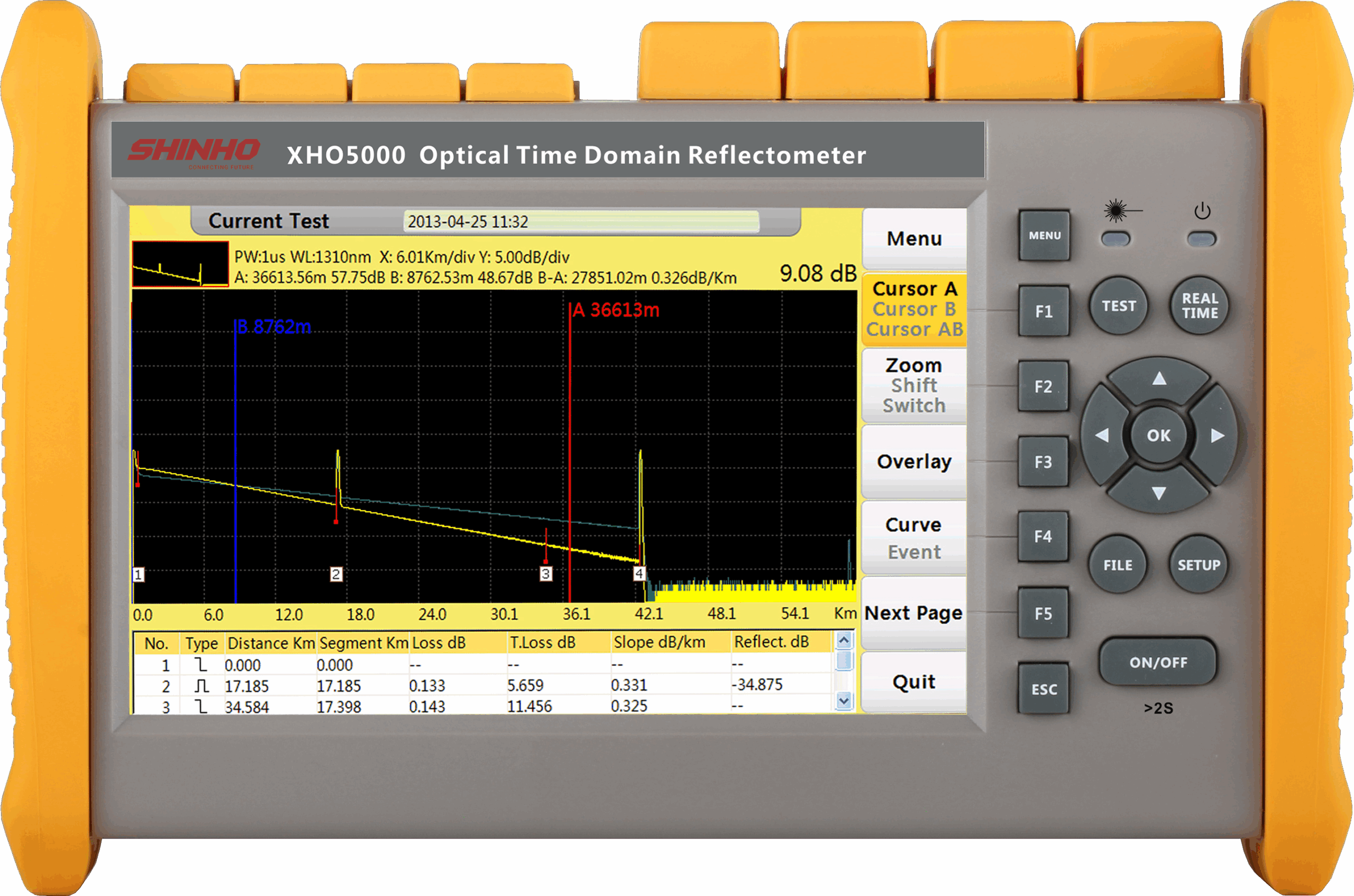

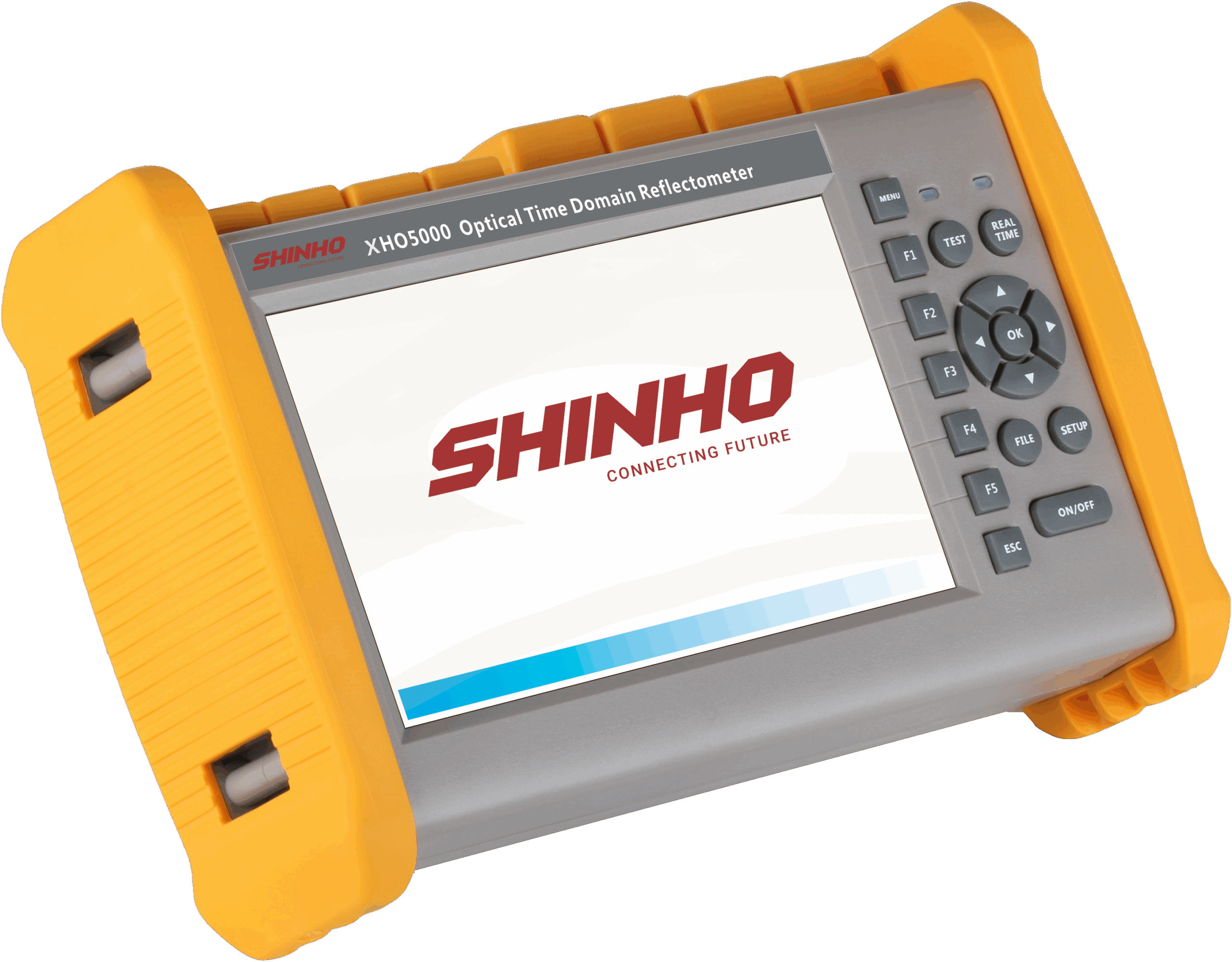

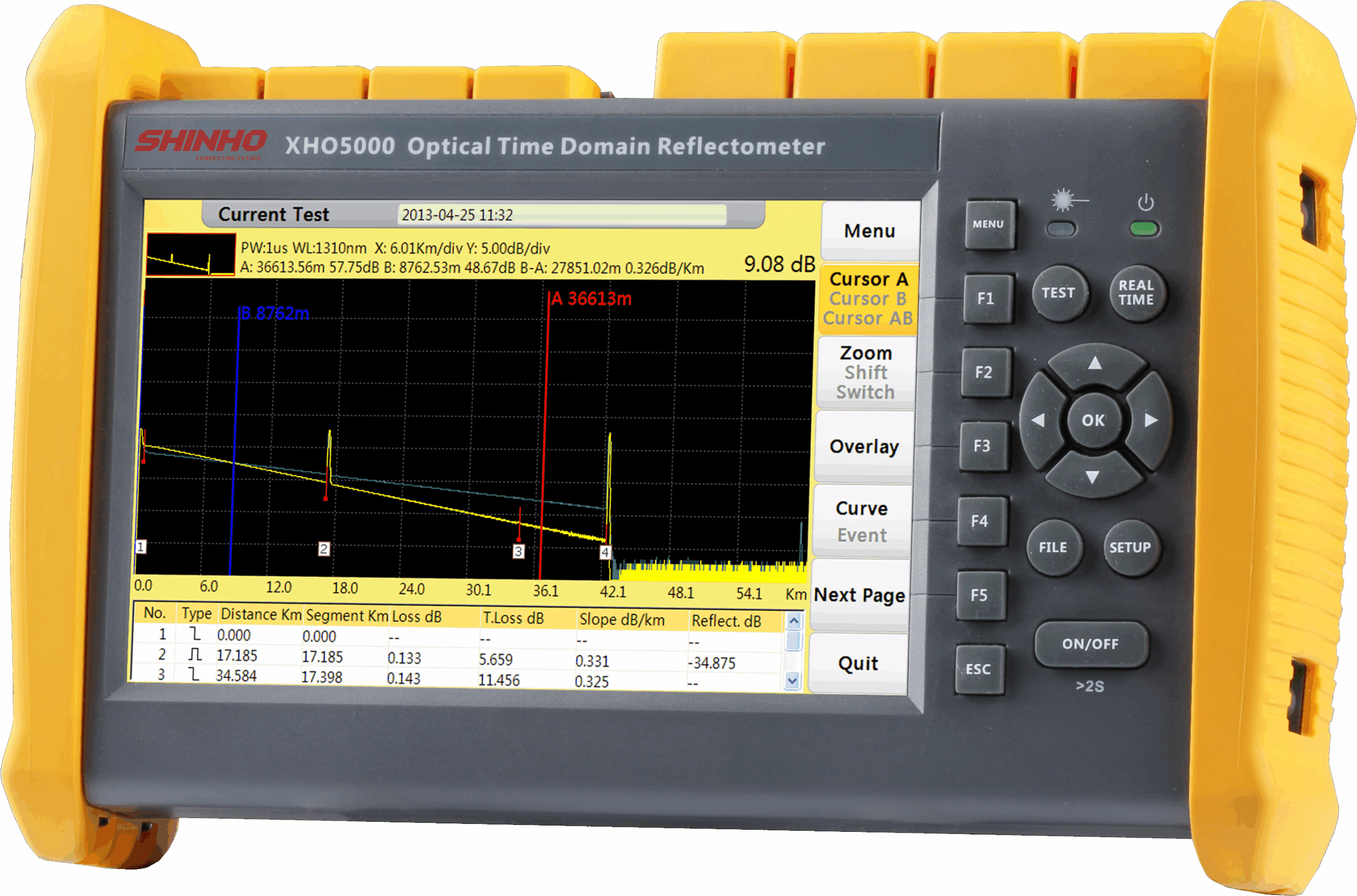

XHO5000 OTDR is manufactured to stringent mechanical, electronic and optical testing and quality assurance, the new design makes XHO5000 more smart and compact and multi-purpose. Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, XHO5000 can be your best assistant.
General Specifications
| Dimension | 253×168×73.6mm /1.5kg (battery included) |
| Display | 7 inch TFT-LCD with LED backlight ,touch screen |
| Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) |
| Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50~60Hz |
| Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours, Charging time: <4 hours (power off) |
| Power Saving | Backlight off: Disable/1 to 99 minutes, Auto shutdown: Disable/1 to 99 minutes |
| Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | English, Spanish and others also optional |
| Environmental Conditions | Operating temperature and humidity: -10~+50 , ≤95% (non-condensation) Storage temperature and humidity: -2 ~+70, ≤95% (non-condensation) Proof: IP65 (IEC60529) |
| Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter |
Technical Specifications
| Type | Testing Wavelength (MM: ±20nm, SM: ±10nm) | Dynamic Range (dB) | Event/Attenuation Dead-zone (m) |
| XHO5000-D26 | 1310/1550 | 26/24 | 0.8/4 |
| XHO5000-D35 | 1310/1550 | 35/33 | 0.8/4 |
| XHO5000-D40 | 1310/1550 | 40/38 | 1/4 |
| XHO5000-D43 | 1310/1550 | 43/41 | 1/5 |
| XHO5000-D45 | 1310/1550 | 45/43 | 1/5 |
| XHO5000-T40F* (with optical filter) | 1310/1550/1625 | 40/38/38 | 1/4 |
| XHO5000-T43F* (with optical filter) | 1310/1550/1625 | 43/41/41 | 1/5 |
| XHO5000-T45F* (with optical filter) | 1310/1550/1625 | 45/43/43 | 1/5 |
| XHO5000-TC35F | 1310/1550/1650 | 35/33/31 | 0.8/4 |
| XHO5000-M21 | 850/1300 | 19/21 | 0.8/4 |
| XHO5000-MD21 | 1310/1550/850/1300 | 35/33/19/21 | 0.8/4;1/4 |
| XHO5000-MD22 | 1310/1550/850/1300 | 40/38/19/21 | 0.8/4;1/4 |
| XHO5000-TP35 | 1310/1490/1550 | 35/33/33 | 0.8/4 |
| Pulse Width | SM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs MM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs |
| Testing Distance | SM: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km MM: 500m, 2km, 5km, 10km, 20km, 40km |
| Sampling Resolution | Minimum 4cm |
| Sampling Point | Maximum 256,000 points |
| Linearity | ≤0.05dB/dB |
| scale Indication | X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
| IOR Setting | 1.4000~1.7000, 0.0001 step |
| Units | Km, miles, feet |
| OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up |
| Testing Modes | Visual fault locator: Visible red light for fiber identification & troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output) Field microscope probe |
| Fiber Event Analysis | Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) Reflective: 0.01 to 32dB (0.01dB steps) Fiber end/break: 3 to 20dB (1dB steps) |
| Other Functions | Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison |
Other Functions
VFL MODULE (Visual Fault Locator, as standard function):
| Wavelength (±20nm) | 650nm |
| Power | 10mw,CLASSIII B |
| Range | 12km |
| Connector | FC/UPC |
| Launching Mode | CW/2Hz |
PM Module (Power Meter, as standard function)
| Wavelength Range (±20nm) | 800~1700nm |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test Range | Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional) |
| Resolution | 0.01dB |
| Accuracy | ±0.35dB±1nW |
| Modulation Identification | 270/1k/2kHz,Pinput≥-40dBm |
| Connector | FC/UPC |
LS Module (Laser Source, as standard function)
| Working Wavelength (±20nm) | 1310/1550/1625nm |
| Output Power | Adjustable -25~0dBm |
| Accuracy | ±0.5dB |
| Connector | FC/UPC |
FM Module (Fiber Microscope, as optional function)
| Magnification | 400X | View of Field | 0.40×0.31mm |
| Resolution | 1.0µm | Storage/working Condition | -18 ~35 |
| Dimension | 235×95×30mm | Weight | 150g |
| USB | 1.1/2.0 | Sensor | 1/3 inch 2 million of pixel |
| Adapter (More adapters available upon request) | SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) | ||
