Description
Characteristics
World-class Splicing and Heating Time
Details
- Removable metal fiber holders
- Inductive heater
- Pluggable battery
- Automatic ARC calibration
- Precise V-groove desgin
- Ceramic hammer
- Fine workmanship
Specifications
Toolbox Dimensions
36CM x 27CM x 19CM
| Alignment method | Clad to Clad alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 1-2 cores 26 seconds，4-12 cores 40 seconds |
Machine Dimensions
149MM x 120MM x 127MM
| Fiber magnification | 25X(X or Y view) |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 300 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating condition | Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max15m/s |
| Dimension/Weight | 156mm (L)×141mm (W)×156mm (H) /2.45kg (including battery) |

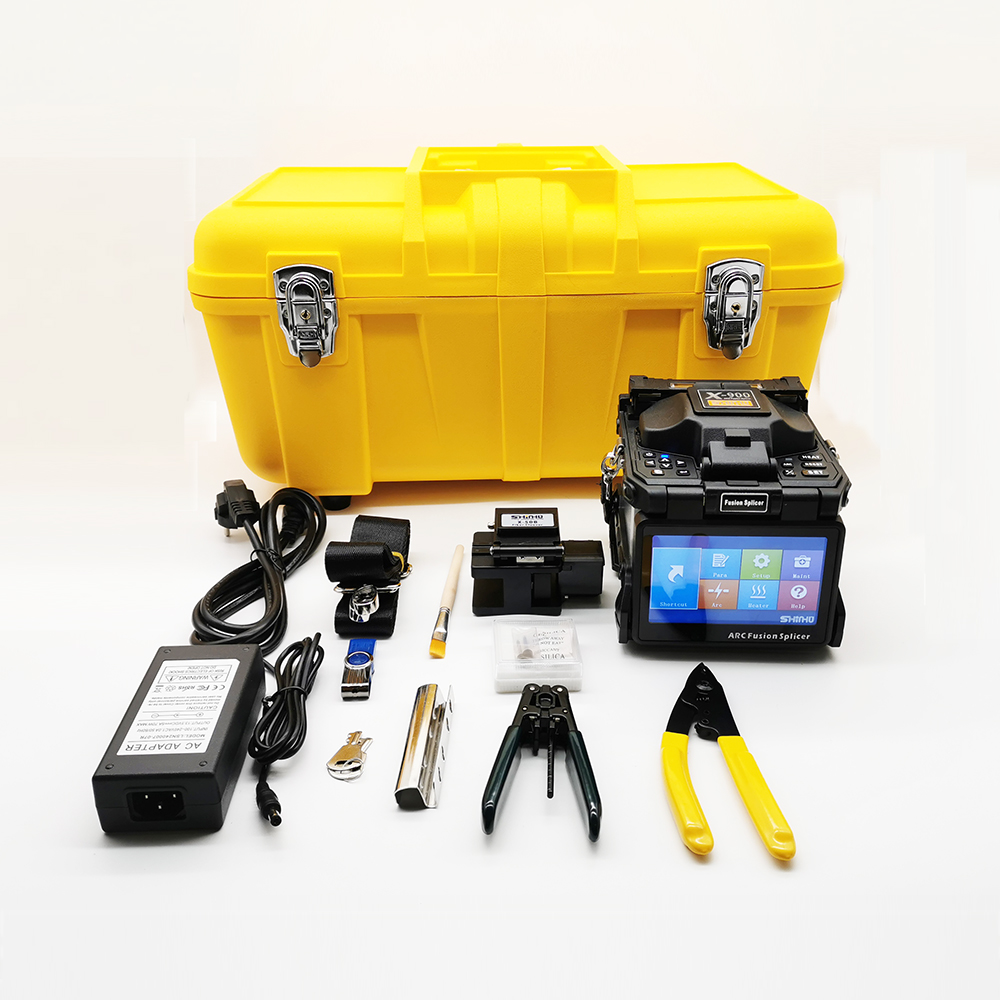

Accessories in the box
Fiber cleaver
Fiber stripper x 17
Fiber holder R-12
Spare electrodes
Drop cable stripper
Power adapter & Cord
User manual in USB stick
Alcohol pump & soft paintbrush
