Description
Details

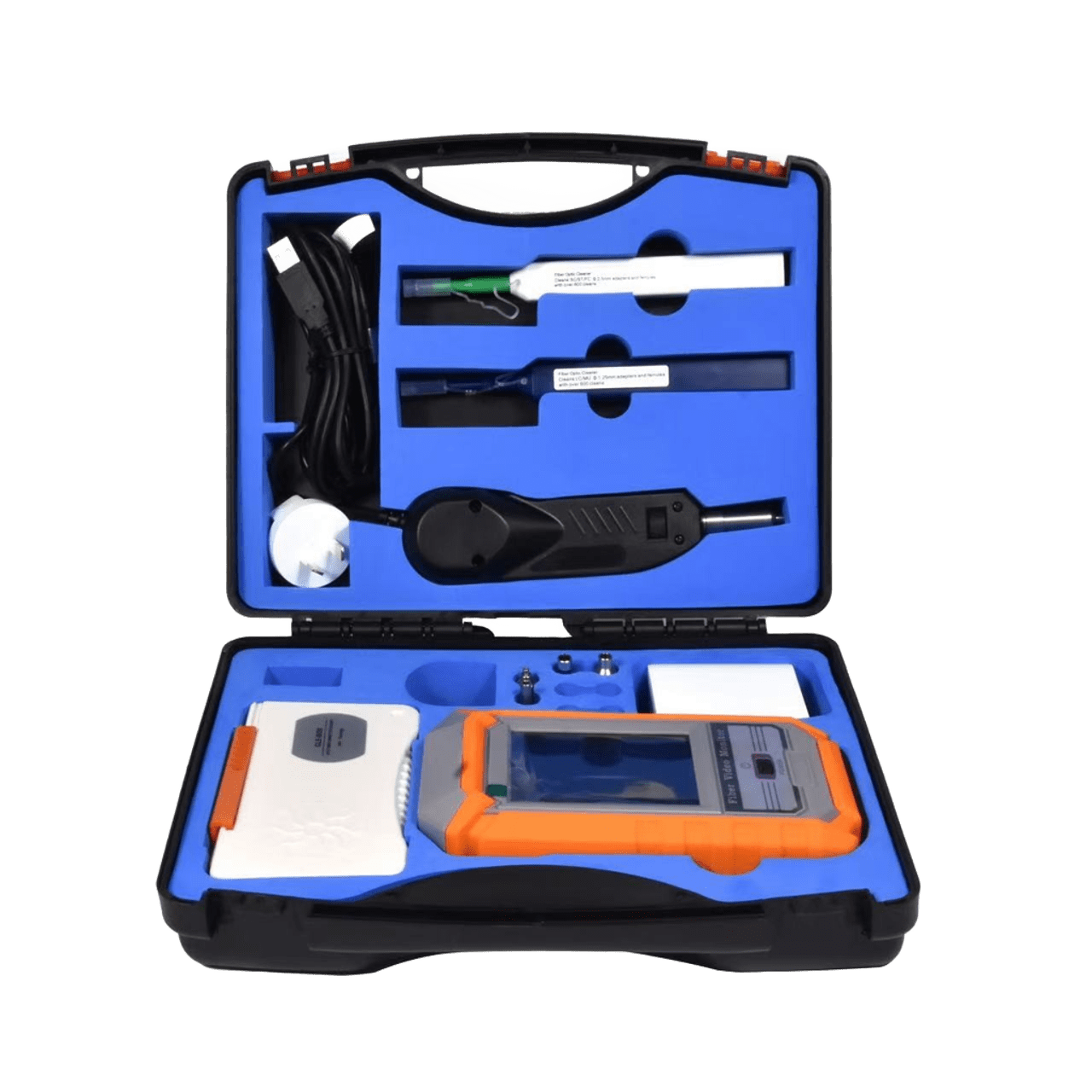

X-FVM100 Fiber inspection and Cleaning Tools Kit is specailly designed for checking and cleaning various ferrules and adapters in FTTH construction and maintenance. It is a very convenient KIT!

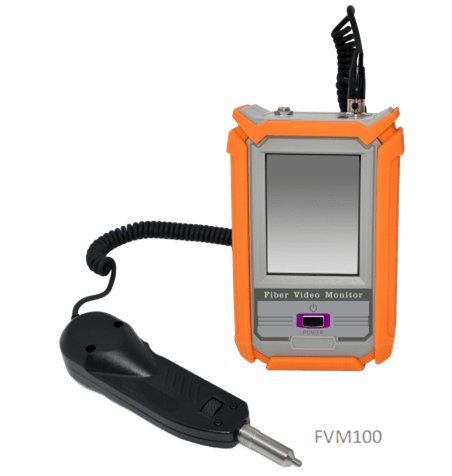

X-FVM100 Probe Specifications
| Magnification | 400X |
| Resolution Ratio | 0.75 um |
| Display Screen | 3.5’’ TFT-LCD, 960×240 pixels |
| Power Supply | 12.6V Li Battery |
| Data Storage | 4G |
| Weight (kg) | Probe (0.16); Monitor (0.4) |
| Dimensions (cm) | Probe (11*4*4); Monitor(17*10*4.5) |
| Work/Storage | -20℃~+50℃ -30℃~+60℃ |
| Item | Accessories | Quantity |
| X-FVM100 Fiber inspection & cleaning tools kit | 1. FVM-100 probe 2. 3.5” TFT-LCD 3. 3.7V AC/DX power adapter 4. 25-U-M 5. 125-U-M 6. 25-U-F 7. LC-U-F 8. CLEP-125-O 9. CLEP-25-O 10.CLE-BOX 11.CLE-BOX REPLACETET | 1pc 1pc 1pc 1pc 1pc 1pc 1pc 1pc 1pc 1pc 1pc |

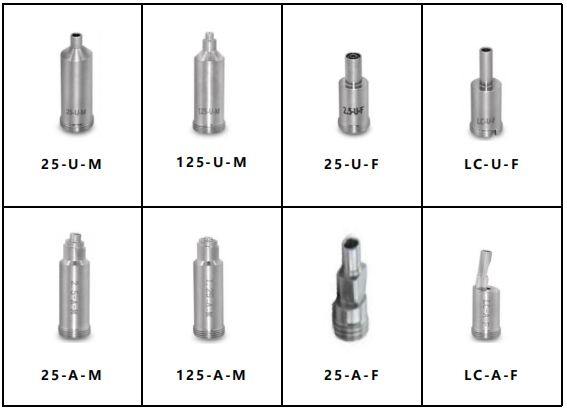

Tips
| Tips Type | Description | |
| 25-U-M | FC/SC/ST/E2000UPC connector | Standard |
| 125-U-M | LC/MU UPC connector | Standard |
| 25-U-F | FC/SC/ST/E2000 UPC bulkhead | Standard |
| LC-U-F | LC/MU UPC bulkhead | Standard |
| 25-A-M | FC/SC/ST/E2000 APC connector | Optional |
| 125-A-M | LC/MU APC connector | Optional |
| 25-A-F | SC/FC APC bulkhead | Optional |
| LC-A-F | LC APC bulkhead | Optional |
