Specifications
Toolbox Dimensions
36CM x 27CM x 19CM
Machine Dimensions
149MM x 120MM x 127MM
| Applicable Fiber | G651/G652/G653/G655/G657 etc.
|
| Cladding Diameter | 80 ~150μm |
| Coating Diameter | 160~3000μm |
| Cleaved Length | 10~16mm ( coating diameter<250μm), 16mm (coating diameter:250~1000μm) |
| Typical Splice Loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB |
| Return Loss | ＞60dB |
| Splicing Program | 100 modes
|
| Operation Mode | Manual/ Auto |
| Auto-Heating | Available |
| Splicing Time | 6~12 seconds |
| Heating Time | 20~26 seconds for 40mm and 60mm shrinkable sleeves |
| Fiber Magnification | 320X(X or Y view), 160X(X and Y view) |
| Viewing Display | Dual high sensitivity camera, 4.3”HD color LCD touch screen
|
| Data Storage | 8000 groups fusion records |
| Loss Evaluation | Available |
| Tension Test | 1.8～2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery Capacity | Detachable 5200mAh Li-battery , typical 250 cycles splicing and heating |
| Power Supply | Adapter, input: AC100~240V(50/60Hz), output: DC11~13.5V |
| Electrode Life | More than 4000 ARC discharges, easy to replace |
| Terminal | USB 2.0 port, for software upgrading, records exporting |
| Operating Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s |
| Dimension/Weight | 165mm(L)×135mm(W)×140mm(H)(including rubber bumper)/2.02kg(with battery) |

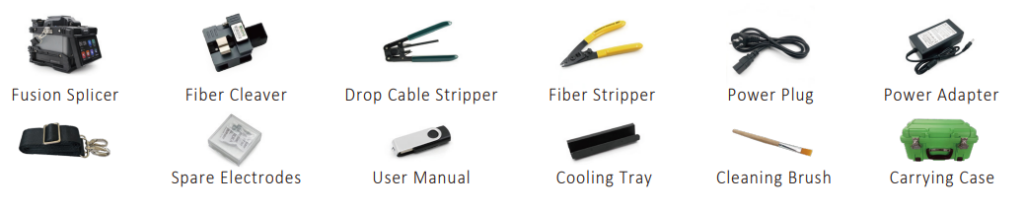

Accessories in the box
