Description
FEATURES
- Small and light, easy to carry
- Support cleaved length 5~16mm
- Blade life more than 48000 times
- Manual cleaving with trash fiber collecting box
- Apply to 250μm/ 900μm/ 3.0mm fibers
- High precision, specially designed for splicing work
- High quality materials, stable cleaving angle less than 0.7°
Specifications
| Fiber Cladding Diameter | 125µm |
| Fiber Coating Diameter | 160µm~3000µm |
| Fiber Type | Single core fiber |
| Cleaved Length | 5~16mm |
| Cleaved Angle | ≤0.7° |
| Blade Life | 48000 times |
| Operation Mode | Manual |
| Dimension | 63mm(W)x76mm(D)x63mm(H) |
| Weight | 380(g) |
| Color | Black |

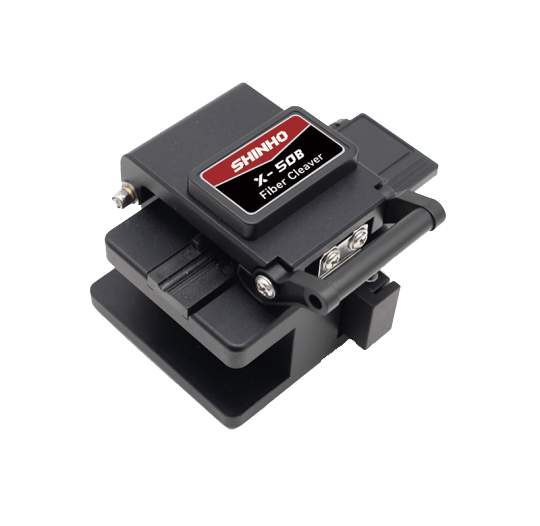

| Package | X-50B fiber cleaver; collecting box; screw driver; user manual; carrying bag |
