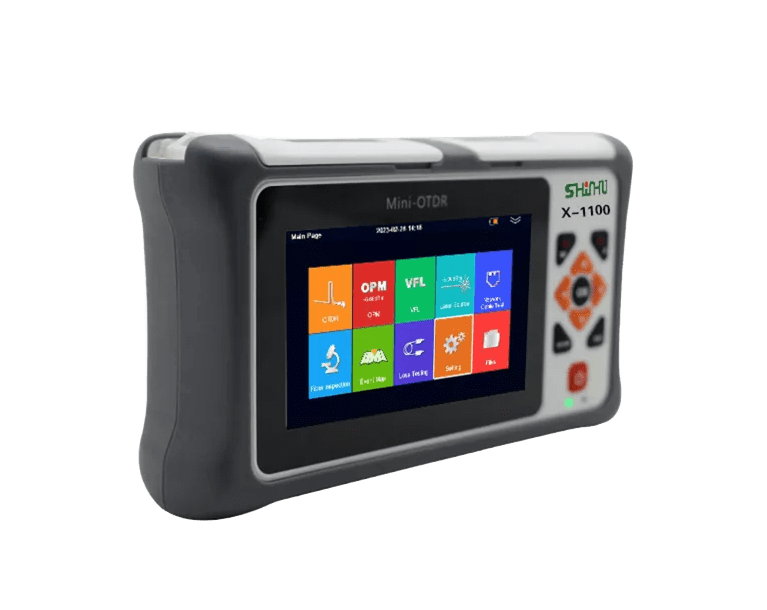

X-1100 Multifunction Mini-OTDR

Nine-in-one function: OTDR,VFL,OPM,OLS,Cable Test Event map, fiber inspection, loss test and flashlight.
The 3-inch full-view capacitive touch screen supports multi-touch
Cover plate type tempered glass panel, don’t worry about screen scratch
Support horizontal version, vertical version, perfect fusion of the two habits of user operations
Support charging treasure charging, do not worry about the battery is not enough
In line with the international standards of test data with perfect simulation software, so that your report more simple

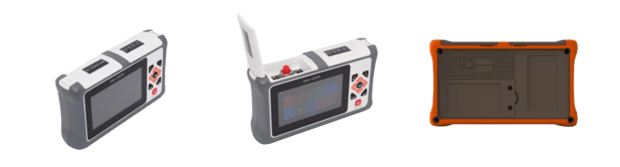

Sink type light port design, so that the instrument light port to get better protection
Support U disk, SD card and Micro USB export data protection
Any interface supports screen capture

Category: OTDR

Description

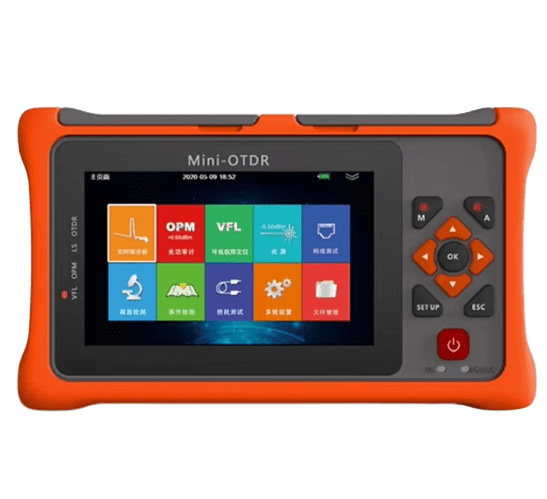

X-1100 series OTDR is a mini version of X-2100. It combines 9 functions at one machine. Different colors for choice.

Display	4.3-inch capacitive touch screen with full viewing , TFT 800×480
Battery	5200mAh/ 3.7v, standby time > for 10 hours
Power Adapter	Power supply AC/DC adapter, input 100-250V AC, 50-60 Ilz, 3 A max, Output 12 V DC. 35W
Data Storage	100,000 groups of curves
Interface	USB A Type×1, Micro-USB×1）, SD card
Working Temp	-10℃~+50℃
Storage Temp	-20℃~+80℃
Humidity	≤95% (non-condensation)
Dimension	175x105x45mm/560g (including battery)
Standard Package	Main Machine,Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package

Linearity		≤0.05dB/dB
scale Indication		X axis: 4~70m/div, Y axis: 0.09~5dB/div
Loss Threshold		0.01dB
Loss Resolution		0.001dB
Distance		0.01m
Distance Accuracy		±(0.5m+Range×3×10-5+Sampling resolution) （Excluding refractive index error）
Module	Parameter		Note
VFL	10mW，CW/2Hz		10mW in default
OPM	Option A：+10dBm~-70dBm; Option B：		Option A in
Laser source	The output power：-5dBm，Modulation frequency：CW/270Hz/1KHz/2KHz
Network Cable test	Support network wire sequence testing and wire alignment
