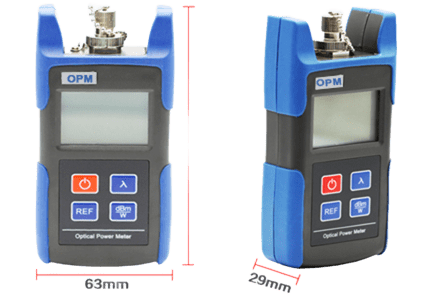

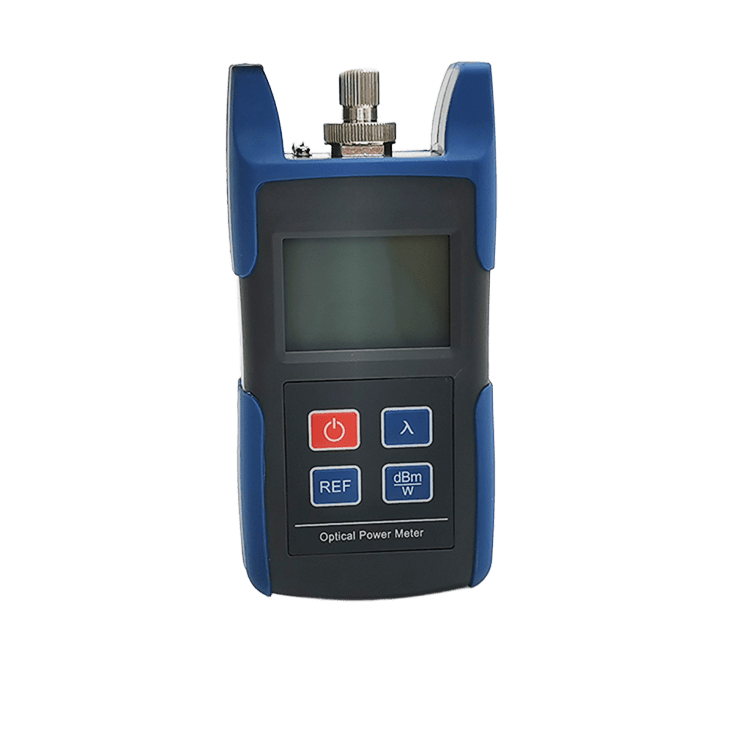

X-0510 Mini-Designed Optical Power Meter is a self-developed test instrument which is
widely used for installation, operation and maintenance of fiber-optic network. X-0510 can
test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm,
1310nm, 1490nm, 1550nm, 1625nm, six calibrated wavelength.
X-0510-A:
Measurement range: -70~+10dBm，calibrated wavelength：850nm、1300nm、1310nm、
1490nm、1550nm、1625nm
X-0510-C:
Measurement range: -50~+26dBm，calibrated wavelength：850nm、1300nm、1310nm、
1490nm、1550nm、1625nm
Specifications
| Model NO. | X-0510-A | X-0510-C |
| Measurement range dBm | -70～+10 dBm | -50～+26 dBm |
| Wavelength range（nm） | 800～1650 | |
| Calibrated wavelength | 850nm、1300nm、1310nm、1490nm、1550nm、1625nm（other wavelength will be on request） | |
| Detector | Inga As | |
| Accuracy | <±3% （-10dBm、22℃） | |
| Resolution | Linearity：0.1%，Non-linearity：0.01dBm | |
| Working temperature | -10℃～+50℃ | |
| Storage temperature | -20℃～+70℃ | |
| Relative humidity | 90%（＋30℃）， | |

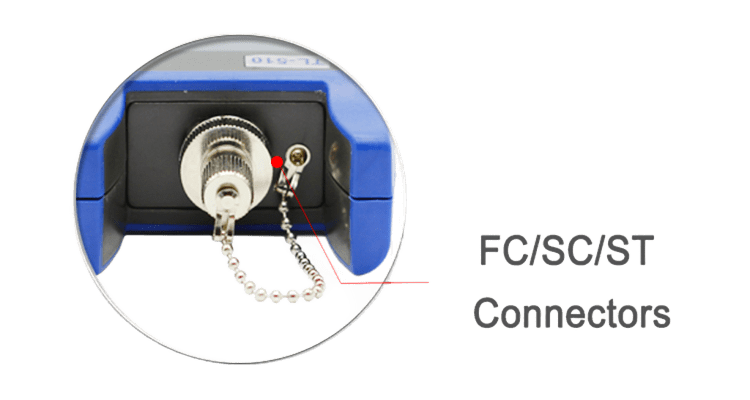

| connector | Movable FC/PC SC/PC，ST/PC( LC as Optional) | |
| Power supply | 3pcs AAA batteries | |
| DC power supply | Optional accessory which require special order,support wide range power input work (AC 90-240) | |
| Working hours | >120 hours（without backlight） | |
| Weight(g) | 160g | |
