Description
Characteristics
Best in-class Splicing and Heating Time

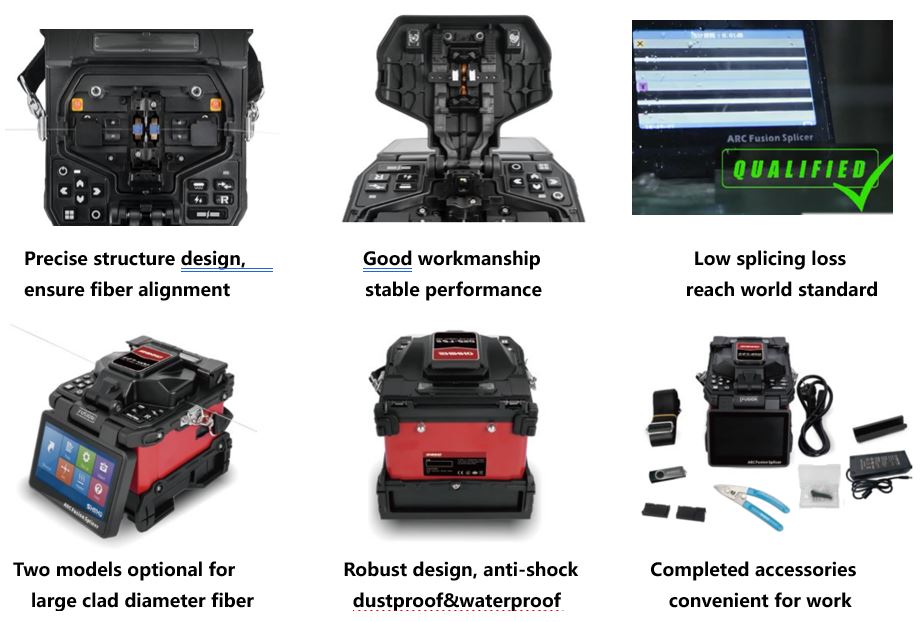

Details
Inductive heater
Mirrorless design, easy to maintain
Pluggable battery
Precise V-groove desgin
Ceramic hammer
Fine workmanship
Specifications
Toolbox Dimensions
36CM x 27CM x 19CM
Machine Dimensions
149MM x 120MM x 127MM
| Model | S-27-250 | S-27-400 | |
| Alignment Method | Clad to clad | ||
| Cladding Diameter | 125~250µm | 250~400µm | |
| Coating Diameter | 250～800µm | ||
| Splicing Program | 40 modes | ||
| Typical Splice Time | 14 seconds | ||
| Typical Heating Time | 30 seconds | ||
| Operation Mode | Manual/ Auto | ||
| Heating Mode | Manual/Auto | ||
| Fiber Magnification | 120X(X or Y view), 60X(X and Y view) | ||
| Viewing Display | Dual high sensitivity camera, 5”HD color LCD Monitor
|
||
| Loss Evaluation | Auto | ||
| Tension Test | 1.8~2.2N | ||
| Interface | GUI menu interface, easy for operation | ||
| Power Supply | Adaptor, input: AC100~240V(50/60Hz), output: DC11~13.5V, 10A | ||
| Electrode Life | 125µm: 3000 arcs; 250µm: 1000 arcs | ||
| Terminal | USB 2.0 port, for software upgrading, records exporting | ||
| Operating Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C;
Max wind: 15m/s |
||
| Dimension/Weight | 155mm(L)×144mm(W)×155mm(H)/1.80kg | ||
Accessories in the box
| Items | Qty | Items | Qty | Items | Qty |
| S-27-250 | 1pc | Power Plug | 1pc | Spare Electrodes | 1pair |
| Fiber Holders(250) | 1pair | Power Adapter | 1pc | Cooling Tray | 1pc |
| Fiber Stripper(250) | 1pc | User Manual(USB driver) | 1pc | Carry Case | 1pc |
| Items | Qty | Items | Qty | Items | Qty |
| S-27-250 | 1pc | Power Plug | 1pc | Spare Electrodes | 1pair |
| Fiber Holders(400) | 1pair | Power Adapter | 1pc | Cooling Tray | 1pc |
| Fiber Stripper(400) | 1pc | User Manual(USB driver) | 1pc | Carry Case | 1pc |
