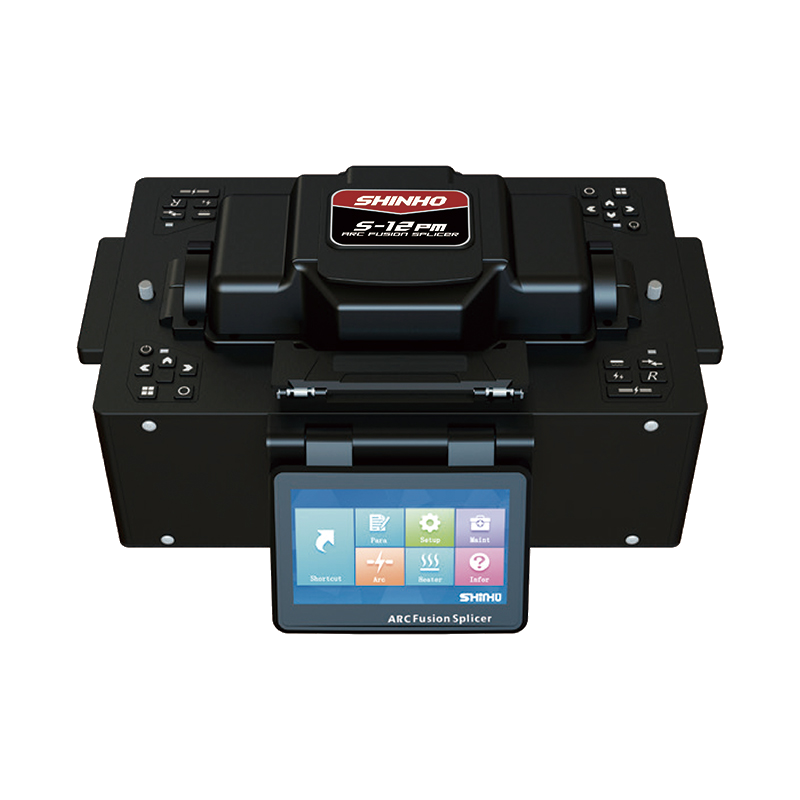

S-12PM Polarization Maintaining Fiber Fusion Splicer

Designed for Polarization Maintaining Fiber
Splicing

Fully automatic operation
Core to core alignment, low splicing loss
Support fiber alignment at different angles
Storage: 8000/100 groups fusion records/images
Real-time ARC calibration, adjustable ARC position
Suitable for 60~400μm PM fibers’ splicing
Direct fiber end face view, more accurate alignment
Fiber profile/end view dual mode aligning technology
Precise integrated propulsion and new focusing design
Applicable to variety fibers splicing, such as Panda,
bow-tie and elliptical fiber

Description

Designed for Polarization Maintaining Fiber

Inductive heater
Pluggable battery
Precise V-groove desgin
Metal holder clamp
Ceramic hammer
Fine workmanship

36CM x 27CM x 19CM

Model Number	S-12PMS	S-12PM	S-12PM+
Applicable Fiber	Telecommunication Fibers: SM/MM/DS/NZDS/EDF
	PM Fibers: Panda fiber, Bow-tie and Elliptical fiber
Cladding Diameter	60~80µm	80~125µm	125~400µm
Coating Diameter	135~900μm
Cleaved Length	9~10mm(standard)
Alignment Method	Profile and fiber end-view available
Typical Splice Loss	SMF: 0.03dB; MMF: 0.02dB; NZDS:0.05dB;PMF 0.06dB
Typical Splice Time	SMF/MMF: 20 seconds; PM: <60 seconds
Return Loss	>60dB
Operation Mode	Manual/Auto
Heating Mode	Manual/Auto
Splicing Program	40 modes

149MM x 120MM x 127MM

Typical Heating Time	Typical 25s, could customize
Extinction Ratio	36.8dB(PANDA)
Tension Test	1.96N(+0%~+20%)

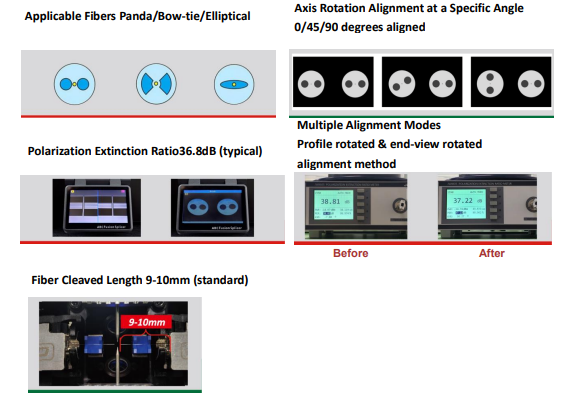

PM Splicing Function	Support splicing at 0, 45 degree and 90 degree
Electrode Life	>2000 times, easy to replace the electrodes
Data Storage	10000 groups fusion records, 100 groups images
Viewing Display	5” HD color LCD Monitor
Terminal	USB 2.0 port, for software upgrading, records exporting, RS232 port, output signal customizable
Dimension	330mm(L)x205mm(W)x172mm(H)
Weight	6.3kg
Operating Condition	-10°C~+50°C
Storage Condition	-20°C~+60°C
Power Supply	Adaptor, input: AC100~240V(50/60Hz), output: DC12.0v⎓10.0A
