a 562

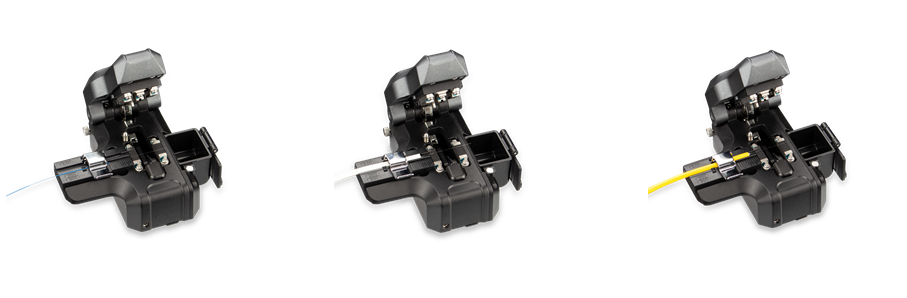

A-56 One Step Fiber Cleaver

FEATURES

  • Made of magnesium alloy, ligh, drop-resistant & long life
  • Blade life more than 48000 times
  • Support cleaved length 9~20mm
  • High quality materials, stable performance
  • Apply to bare fiber, 250um/ 900um/ 3.0mm fibers
  • High precision, specially designed for splicing work
  • One step to change cutting point without screwdriver

Contact us

Category:

Description

a 562

Details

Download Datasheet

Specifications

Bare fiber diameter 125µm
Coating diameter 0.25mm~0.9mm
Fiber type Single fiber
Cleaved length 9~20mm
Cleaved angle ≤0.6°
Blade life More than 48000 times
Mode Automatic
Dimension 85mm(W)×75mm(D)×45mm(H)
Weight 140g( only cleaver)/ 214g (including box)
Package Fiber Cleaver, Collecting box, Screws, User Manual, Carrying bag



a 56 2

Accessories in the box

Bare fiber diameter 125µm
Coating diameter 0.25mm~0.9mm
Fiber type Single fiber
Cleaved length 9~20mm
Cleaved angle ≤0.6°
Blade life More than 48000 times
Mode Automatic
Dimension 85mm(W)×75mm(D)×45mm(H)
Weight 140g( only cleaver)/ 214g (including box)
Package Fiber Cleaver, Collecting box, Screws, User Manual, Carrying bag
